Grande internacional do sistema limitado
|
Detalhes do produto:
Condições de Pagamento e Envio:
|
| Número de canais: | UM | Lugar do transmissor: | Zona 0, IIC, área T4-6 perigosa se Div apropriadamente certificado. 1, lugar perigoso do grupo A |
|---|---|---|---|
| Escala do sinal:: | 4 a 20mA | Sob/escala:: | 0 a 24mA |
| Tensão do transmissor: | 16.5V em 20mA | Precisão de transferência em 20°C: | Melhor do que 15µA |
| Tempo de resposta: | Acordos dentro a 10% do valor final dentro de 50µs | Comunicações apoiadas: | CERVO (terminais 1 & 2, saída Ch 1 única) |

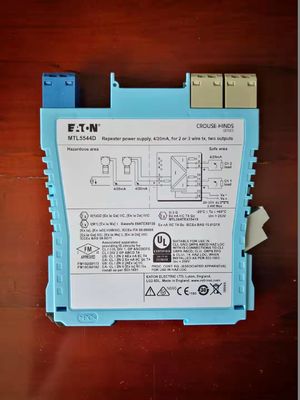

The MTLx544D provides a fully-floating dc supply for energising a
conventional 2- or 3-wire 4/20mA transmitter located in a hazardous
area, and repeats the current in other circuits to drive two safe-area
loads. For HART 2-wire transmitters, the unit allows bi-directional
transmission of digital communication signals superimposed on the
4/20mA loop current. Separately powered current sources, such
as 4-wire transmitters, can be connected but will not support HART
communication.
