Detalhes do produto:
Condições de Pagamento e Envio:
|
| Cor: | Branco e azul | Material: | Plástico e metal |
|---|---|---|---|
| Tipo de produto: | Relação do transdutor da vibração | Número de canais: | UM |
| Escala do sinal: | – 20V, máximo – 0.5V mínimo | Indicador do diodo emissor de luz: | Indicação do verde = de poder |
| Tensão de fonte: | 20 a C.C. 35V | Peso do transporte: | 1.0kg |

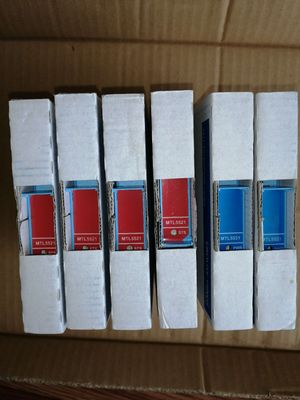

MTL5531 MTL Instruments Vibration Transducer Interface
The MTLx531 repeats a signal from a vibration sensor in a hazardous
area, providing an output for a monitoring system in the safe area.
The interface is compatible with 3-wire eddy-current probes and
accelerometers or 2-wire current sensors; the selection is made by a
switch on the side of the module.
Manufacturer : MTL Instruments
Product No. : MTL5531
Product type : Vibration Transducer Interface
Number of channels : One
Sensor type : 2- or 3-wire vibration transducer
Location of signal source : Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location
Hazardous-area input : Input impedance (terminals 2 & 3): 10k?
Transducer supply current, 2-wire : 3.3mA (nom.) for 2-wire sensors, user selectable by switch
Signal range : Minimum –20V, maximum –0.5V
DC transfer accuracy at 20°C : <±50mV
LED indicator : Green = power indication
Safe-area output impedance : <20?
Supply voltage : 20 to 35V dc
Maximum current consumption (10mA transducer load) : 65mA at 24V
Maximum power dissipation within unit : 1.33W
Dimensions ( D x W x H ) : 1.58 cm x 10.98 cm x 12.36 cm
Weight : 0.11 Kg
Shipping weight : 1.0 Kg
