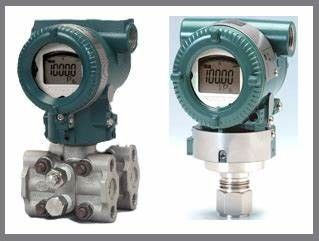

EJA430E-DAS4G Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto

EJA430E-DAS4G Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto
EJA430E-DAS4G Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto

Imagem Grande :  EJA430E-DAS4G Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto

Detalhes do produto:
Lugar de origem: Japão
Marca: YOKOGAWA
Certificação: ROHS
Número do modelo: EJA430E-DAS4G-31ED/FF1/D3/S2/C1/T01
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1
Preço: Negotiable
Detalhes da embalagem: Caixa
Tempo de entrega: a pedido
Termos de pagamento: T/T
Habilidade da fonte: 1~1000PCS
Descrição de produto detalhada
Rangeability: 100:1 Tempo de resposta: 90ms
fabricante: YOKOGAWA Modelo: EJA430E-DAS4G-31ED/FF1/D3/S2/C1/T01
ESTABILIDADE: ±0.1% do URL por 7 anos Precisão: ±0.055% do período
Origem: Japão Packing: Caixa padrão de Yokogawa

EJA430E-DAS4G Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto





Description:





Manufacturer : Yokogawa

Product No. : EJA430E-DAS4G-31ED/FF1/D3/S2/C1/T01

Product type : Gauge Pressure Transmitter

EJA430E : Gauge pressure transmitter

D - Output signal : 4 to 20 mA DC with digital communication (BRAIN protocol)

A - Measurement span (capsule) : 0.03 to 3.5 MPa (4.3 to 500 psi)

S - Wetted parts material

Cover flange and process connector : ASTM CF-8M

Capsule : Hastelloy C-276 (Diaphragm) F316L SST, 316L SST (Others)

Capsule gasket : Teflon-coated 316L SST

Vent/Drain plug : 316 SST

4 - Process connections : with 1/2 NPT female process connector

G - Bolts and nuts material : 316L SST

3 - installation : Vertical piping, right side high pressure, and process connection down side

1 - Amplifier housing : Cast aluminum alloy

E - Integral indicator : Digital indicator with the range setting switch (push button)

D - Mounting Bracket : 304 SST or SCS13A 2-inch pipe mounting, L type (for vertical piping)

FF1 - Factory Mutual (FM) : FM Explosionproof Approval *1 Applicable Standard: FM3600, FM3615, FM3810, ANSI/NEMA 250 Explosionproof for Class I, Division 1, Groups B, C and D, Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G, in Hazardous locations, indoors and outdoors (Enclosure: Type 4X) “FACTORY SEALED, CONDUIT SEAL NOT REQUIRED.” Temperature class: T6, Amb. Temp.: –40 to 60°C (–40 to 140°F)

D3 - Calibration units : bar calibration (bar unit)

S2

C1 - Output limits and failure operation : Failure alarm down-scale : Output status at CPU failure and hardware error is -5%, 3.2mA DC or less for 4 to 20 mA output type, and -5%, 0.8V DC or less for 1 to 5 V output type.

T01 - Pressure test/ Leak test certificate : Test Pressure: 3.5 MPa (500 psi)

Shipping weight : 8 Kg








The EJA430E is a traditional-mount gauge pressure transmitter in the series.

EJA430E features include:
  •  0.055% Accuracy (0.04% Accuracy optional)
  •  0.1% Stability per 10 years
  • 90 ms Response Time
  • Exida and TUV SIL 2/3 Certified
  • Local Parameter Setting (LPS)





  Hot sale Original Japanese Yokogawa 4-20ma Pressure Transducer EJA110E
L Capsule M Capsule H Capsule V Capsule
Range -10 to 10 kPa -100 to 100 kPa -500 to 500 kPa -0.5 to 14 MPa
(-40 to 40 inH2O) (-400 to 400 inH2O) (-2000 to 2000 inH2O) (-70 to 2000 psi)
Span 0.5 to 10 kPa 1 to 100 kPa 5 to 500 kPa 0.14 to 14 MPa
(2 to 40 inH2O) (4 to 400 inH2O) (20 to 2000 inH2O) (20 to 2000 psi)
Accuracy ±0.075% ±0.065% ± 0.065% ±0.065%
Degrees of Protection IP67, NEMA 4X, and JIS C0920 immersion proof
Certificates FM, CENELEC ATEX, CSA, IECEx
Output 4 to 20 mA DC, FOUNDATIONTM fieldbus or PROFIBUS PA 2-wire system with digital communication
Supply Voltage BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model)
Ambient temperature -40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator)
Process Temperature -40 to 120 deg C (-40 to 248 deg F) (general use type)
Maximum Working Pressure 16MPa(2300psi)
3.5MPa(500psi) for L capsule with special materials
Mounting 2-inch pipe mounting
Wetted parts material Capsule SUS316L(Diaphragm material is Hastelloy C-276),
Hastelloy C-276, Tantalum, Monel
Cover flange SUS316, Hastelloy C-276, Monel
Housing Cast aluminum alloy or SUS316 equivalent stainless steel (optional)







Common Models:



EJA430E-DAS4G-717DD
EJA430E-DAS4J-717DD
EJA430E-JAS5G-93DEB
EJA430E-JBS4C-93DEB
EJA430E-FAS5G-919DB
EJA430E-DBS4J-917DB/KF22
EJA430E-DAS4J-710DD/D3/C1
EJA430E-JAS4G-917DB/X2/A/D3/M11
EJA430E-JAS4G-722ND/KU22/A/D4
EJA430E-JAS4G-93CED/KU22/HAC/A
EJA430E-JBS5G-93CED/KU22/HAC/A
EJA430E-JBS4G-93CED/KU22/HAC/A
EJA430E-JBS5C-91DDB/KU22/X2/T12
EJA430E-JAS5J-919DN/KS21/D3/M01/T01/X2
EJA430E-JAS5G-919DB/KU22/X2/D3/M01/T01
EJA430E-JBS5G-919DB/KU22/X2/D3/M01/T12
EJA430E-JAS5G-92DDJ/KS21/A/D3/M01/T01
EJA430E-FHS4G-919DD/KS26/D3/X2/M11/T11
EJA430E-FHS4G-919DB/KS26/D3/X2/M11/T11
EJA430E-JHS4G-919DD/KU22/D3/X2/M11/T11
EJA430E-JHS4G-919EB/KU22/D3/X2/M11/T11
EJA430E-JBS5G-919DB/KU22/D3/X2/M01/T12
EJA430E-JBS5G-919DB/KU22/X2/D3/M01/T12
EJA430E-JAS5J-719DD/X2/D3/M01/T01/KU22
EJA430E-JBS5J-719DD/X2/D3/M01/T12/KU22
EJA430E-FAS5G-919DJ/KS26/M01/T01/D3
EJA430E-FAS5G-719DD/KS26/M01/T01/D3
EJA430E-FAS5G-319DD/KS26/M01/T01/D3
