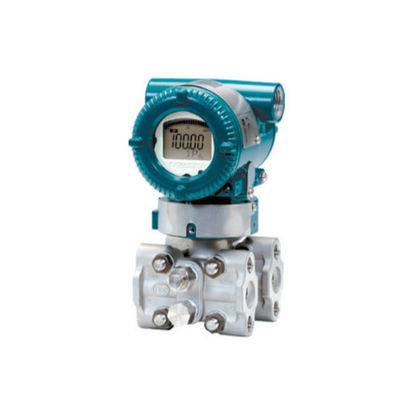

EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter

Certificado
CHINA Great System International Limited Certificações
Olá! Qiang. 2021 anos novo feliz! Nós começamos trabalhar o ano de hoje. Obrigado muito para a cooperação no ano passado e espere-o que nós a faremos para melhorar este ano!

—— Alexandr Blagov

Frank, obrigado para sua honestidade e seu ano passado onde confiável da empresa eu espero será estender junto nosso negócio no próximo ano. Tenha um bom feriado.

—— Hbabaee

Foi muito agradável para cooperar com você com todos estes anos e agradecer-lhe tanto para seus apoio amável e melhor serviço!

—— Niloufar Soltani

Estou Chat Online Agora

EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter

EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter
EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter

Imagem Grande :  EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter

Detalhes do produto:
Lugar de origem: Japão
Marca: YOKOGAWA
Certificação: ROHS
Número do modelo: EJX110A-FMS5G-914DJ/KS26/M01/T13/D3
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1pc
Preço: negotiable
Detalhes da embalagem: original da fábrica
Tempo de entrega: 8-10weeks
Termos de pagamento: T/T
Habilidade da fonte: 50PCS/Month
Descrição de produto detalhada
Modelo: EJX110A-FMS5G-914DJ/KS26/M01/T13/D3 Código do HS: 90261000
Precisão:: precisão do ± 0,04% (0,025% opções da precisão disponíveis) fabricante: YOKOGAWA
Garantia: 12 meses Nome do produto: Transmissor de pressão diferencial
Tempo de resposta: Senhora 90 ESTABILIDADE: ± 0,1% por 15 anos de estabilidade

EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter










Description:


Manufacturer : Yokogawa

Model: EJX110A-FMS5G-914DJ/KS26/M01/T13/D3

Model : EJX110A - Differential pressure transmitter

Output signal : F - Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C25T02-01EN)

Measurement span (capsule) : M - 0.5 to 100 kPa (2 to 400 inH2O)

Process connections : 5 - without process connector (1/4 NPT female on the cover flanges)

Bolts and nuts material : G - 316L SST

Installation : 9 - Horizontal piping and left side high pressure

Amplifier housing : 1 - Cast aluminum alloy

Integral indicator : D - Digital indicator

Mounting bracket : J - 316 SST 2-inch pipe mounting, flat type (for horizontal piping)

Dimensions (HxWxD), approx : 17.5cm x 11cm x 9.5cm

Shipping Weight : 8Kg
0 = Always 0
Shipping weight : 7KG











Additional Informaiton:

The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.The EJX110A is the traditional-mount Differential Pressure Transmitter in the series.



EJX110A features include:



± 0.04% Accuracy (0.025% Accuracy option available)
± 0.1% per 15 years Stability
90 ms Response Time
3,600 psi MWP
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)











EJX110A Differential Pressure Transmitter

EJX118A Diaphragm Sealed Differential Pressure Transmitter

EJX130A Differential Pressure Transmitter

EJX120A Differential Pressure Transmitter

EJX310A Absolute Pressure Transmitter

EJX430A Gauge Pressure Transmitter

EJX440A Gauge Pressure Transmitter

EJX510A and EJX530A Absolute and Gauge Pressure Transmitter

EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

EJX210A Flange Mounted Differential Pressure Transmitter

EJA110E Differential Pressure Transmitter

EJA115E Low Flow Transmitter

EJA118E Diaphragm Sealed Differential Pressure Transmitter

EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA120E Differential Pressure Transmitter

EJA130E Differential Pressure Transmitter

EJA210E Flange Mounted Differential Pressure Transmitter

EJA310E Absolute Pressure Transmitter

EJA430E Gauge Pressure Transmitter

EJA438E Diaphragm Sealed Gauge Pressure Transmitter

EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)

EJA440E Gauge Pressure Transmitter

EJA530E In-Line Mount Gauge Pressure Transmitter











EJX110A-EMS5G-919DB/KS21/D4
EJX110A-EMS4G-919DB/KU22/N4
EJX110A-EMS4J-919EN/KU22/M11/T13
EJX110A-EMS5G-92DDN/KU22/D3/T13
EJX110A-FHS5G-914DJ/KS26/M01/T13/D1

EJX110A-FMS5G-914DJ/KS26/M01/T13/D3
