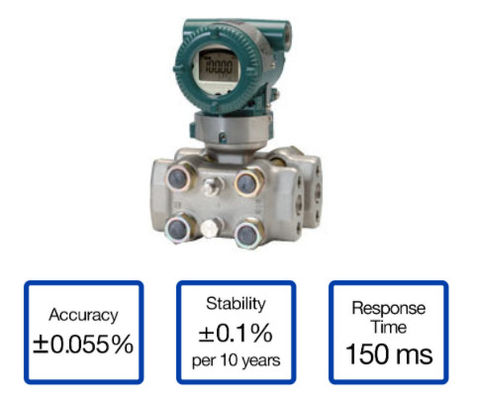

EJA130E-JMS4G-712DD/D4 Yokogawa EJA130E Differential Pressure Transmitter

EJA130E-JMS4G-712DD/D4  Yokogawa EJA130E Differential Pressure Transmitter
EJA130E-JMS4G-712DD/D4  Yokogawa EJA130E Differential Pressure Transmitter

Imagem Grande :  EJA130E-JMS4G-712DD/D4 Yokogawa EJA130E Differential Pressure Transmitter

Detalhes do produto:
Lugar de origem: Japão
Marca: YOKOGAWA
Certificação: ROHS
Número do modelo: EJA130E-JMS4G-712DD/D4
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1pc
Preço: negotiable
Detalhes da embalagem: original da fábrica
Tempo de entrega: 8-10weeks
Termos de pagamento: T/T
Habilidade da fonte: 50PCS/Month
Descrição de produto detalhada
Modelo: EJA130E-JMS4G-712DD/D4 fabricante: YOKOGAWA
Precisão:: precisão do ± 0,055% Nome do produto: Transmissor de pressão diferencial
Tempo de resposta: Senhora 150 ESTABILIDADE: estabilidade do ± 0,1% por 10 anos
Certificado: Exida e o TUV SIL 2/3 certificaram Packing: Caixa padrão de Yokogawa

EJA130E-JMS4G-712DD/D4 Yokogawa EJA130E Differential Pressure Transmitter









Decription:

Manufacturer : Yokogawa
Product No. : EJA130E-JMS4G-712DD/D4
Product type : Differential Pressure Transmitter
Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)*1
Measurement span (capsule) : M = 1 to 100 kPa (4 to 400 inH2O)
Wetted parts material *2 : S = Cover flange F316 SST, Process connector ASTM CF-8M *1, Capsule Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others), Capsule gasket Teflon-coated 316L SST, Vent/Drain plug 316 SST
Amplifier housing : 2 = ASTM CF-8M stainless steel*5
Electrical connection : 4 = M20 female, two electrical connections without blind plugsIntegral indicator : D = Digital indicator*7
Mounting bracket : N = None
Shipping Weight : 10Kg



Additional Informaiton:

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.



The EJA130E is designed to measure accurately, transmit quickly, and do it reliably over time.



Accurately: ± 0.055% Accuracy
Reliably: ± 0.1% Stability per 10 years
Quickly: 150 ms Response Time.









EJX110A Differential Pressure Transmitter

EJX118A Diaphragm Sealed Differential Pressure Transmitter

EJX130A Differential Pressure Transmitter

EJX120A Differential Pressure Transmitter

EJX310A Absolute Pressure Transmitter

EJX430A Gauge Pressure Transmitter

EJX440A Gauge Pressure Transmitter

EJX510A and EJX530A Absolute and Gauge Pressure Transmitter

EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

EJX210A Flange Mounted Differential Pressure Transmitter

EJA110E Differential Pressure Transmitter

EJA115E Low Flow Transmitter

EJA118E Diaphragm Sealed Differential Pressure Transmitter

EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA120E Differential Pressure Transmitter

EJA130E Differential Pressure Transmitter

EJA210E Flange Mounted Differential Pressure Transmitter

EJA310E Absolute Pressure Transmitter

EJA430E Gauge Pressure Transmitter

EJA438E Diaphragm Sealed Gauge Pressure Transmitter

EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)

EJA440E Gauge Pressure Transmitter

EJA530E In-Line Mount Gauge Pressure Transmitter





EJA130E-JMS4G-712DD/D4
EJA130E-JMS5J-917DB/C1/X2
EJA130E-JHS4J-817EB/FF1/D4
EJA130E-JHS4J-817EB/FU1/D4
EJA130E-JMS5J-719DC/NS21/N4
EJA130E-EMS5B-99DA/X1/D4/M01/T09
EJA130E-JMS4G-91DDJ/KS21/X2/HC/N4
EJA130E-FHS5G-919DB/X2/D4/M01/T09/KS26
EJA130E-FMS5G-919DB/X2/D4/M01/T09/KS26
EJA130E-JMS5G-719DD/X2/D4/M01/T09/KU22
EJA130E-FMS5G-919DB/X2/D4/M01/T09/KS26

EJA130E-FMS5G-919DB/KS26/X2/D4/M01/T09









Delivery details





SHIPPING:

•We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong. if you have any special needs,please notify me.

•It will take 3 to 7days to reach in your hands.China Post delivery schedule will be in 20-45 days. If you can't wait, please choose other express
